Execution Pipeline

import pandas as pd
import os
import json

from data_pipeline.match_RPlan_BPlan.matching_plans import merge_rp_bp
from data_pipeline.match_RPlan_BPlan.matching_plans import export_merged_bp_rp
from data_pipeline.nrw_pdf_downloader.geojson_parser import parse_geojson
from data_pipeline.nrw_pdf_downloader.nrw_pdf_scraper import run_pdf_downloader
from data_pipeline.pdf_scraper.tika_pdf_scraper import pdf_parser_from_folder
from features.textual_features.document_texts_creation.create_document_texts import enrich_extracts_with_metadata
from features.textual_features.keyword_search.exact_keyword_search import search_df_for_keywords
from features.textual_features.keyword_search.contextual_fuzzy_search import search_best_matches_dict

from data_pipeline.rplan_content_extraction.rplan_utils import extract_text_and_save_to_txt_files
from data_pipeline.rplan_content_extraction.rplan_content_extractor import parse_rplan_directory
from data_pipeline.rplan_content_extraction.rplan_utils import parse_result_df
from data_pipeline.rplan_content_extraction.rplan_keyword_search import rplan_exact_keyword_search
from visualizations.rplan_visualization import plot_keyword_search_results

INPUT_BP_FILE_PATH = '../data/nrw/bplan/raw/links/NRW_BP.geojson'
INPUT_REGIONS_FILE_PATH = '../data/nrw/rplan/raw/geo/regions_map.geojson'

BP_PDF_DIR = '../data/nrw/bplan/raw/pdfs'
BP_CSV_FILE_PATH = '../data/nrw/bplan/raw/links/NRW_BP_parsed_links.csv'
LAND_PARCELS_FILE_PATH = '../data/nrw/bplan/raw/links/land_parcels.geojson'

BP_TEXT_FILE_PATH_JSON = '../data/nrw/bplan/raw/text/bp_text.json'

RPLAN_PDF_DIR = "../data/nrw/rplan/raw/pdfs"
RPLAN_TXT_DIR = "../data/nrw/rplan/raw/text"
RPLAN_OUTPUT_PATH = "../data/nrw/rplan/features/regional_plan_sections.json"
RPLAN_KEYWORDS_PATH = "../data/nrw/rplan/features/rplan_keywords.json"

DOCUMENT_TEXT_FILE_PATH_JSON = '../data/nrw/bplan/raw/text/document_texts.json'

EXACT_KEYWORD_DICT_FILEPATHS = {
    'features/textual_features/keyword_search/keyword_dict_baunvo.json':
    '../data/nrw/bplan/features/keywords/exact_search/baunvo_keywords.csv'
    }
"""key: keyword dict path, value: output csv path"""

HOCHWASSER_KEYWORD_DICT_FILEPATH = 'features/textual_features/keyword_search/keyword_dict_hochwasser.json'
HOCHWASSER_FUZZY_SEARCH_FILE_PATH_CSV = '../data/nrw/bplan/features/keywords/fuzzy_search/keyword_dict_hochwasser.csv'
HOCHWASSER_FUZZY_SEARCH_FILE_PATH_JSON = '../data/nrw/bplan/features/keywords/fuzzy_search/keyword_dict_hochwasser.json'

DOCUMENT_ID_COLUMN='filename'
TEXT_COLUMN='content'
METADATA_COLUMNS = 'metadata'

Step 1: Scrape building plans from NRW geoportal

The basis for this scrape is a data set with links to building plans in pdf format (scanurl) and further metadata per building plan provided in the NRW geoportal, also made available in this repository ('../data/nrw/bplan/raw/links/NRW_BP.geojson'). The information from this file is parsed, relevant links and further information are extracted and the PDF files are then downloaded.

# Parse geojson
parsed_geojson = parse_geojson(file_path=INPUT_BP_FILE_PATH,
                               output_path = BP_CSV_FILE_PATH)

parsed_geojson = pd.read_csv(BP_CSV_FILE_PATH)
print(parsed_geojson.shape)
# Run downloader
run_pdf_downloader(input_df=parsed_geojson,
                   output_folder=BP_PDF_DIR)

To create the data table land_parcels, we add columns that refer to the regional plan corresponding to each development plan. It takes as input the same geojson (INPUT_BP_FILE_PATH) we were working with before, but also the file that contains geodata of the regions (provided by GreenDIA and also in this repository).

land_parcels = merge_rp_bp(INPUT_BP_FILE_PATH, INPUT_REGIONS_FILE_PATH)

export_merged_bp_rp(LAND_PARCELS_FILE_PATH, INPUT_BP_FILE_PATH, INPUT_REGIONS_FILE_PATH)

# Clearing memory before new executions
del parsed_geojson
del land_parcels

Step 2: Extract text from PDFs

In which we apply OCR to extract the text from each document scraped from the NRW building plan portal.

parsed_pdfs_df = pdf_parser_from_folder(folder_path=BP_PDF_DIR)

parsed_pdfs_json = parsed_pdfs_df.to_json(orient='records')

with open(BP_TEXT_FILE_PATH_JSON, 'w') as outputfile:
    outputfile.write(parsed_pdfs_json)

del parsed_pdfs_df
del parsed_pdfs_json

Step 3: Enrich extracted building plan texts with information about corresponding land parcels

To ultimately create the data table document_texts

bplans_info = pd.read_csv(BP_CSV_FILE_PATH, dtype='unicode')
bplans_text = pd.read_json(BP_TEXT_FILE_PATH_JSON)

result_df = enrich_extracts_with_metadata(info_df=bplans_info,
                                          text_df=bplans_text)

bp_parsed_links = pd.read_csv('../data/nrw/bplan/raw/links/NRW_BP_parsed_links.csv')

bplans_info['plantyp'].unique()

# write results to json
result_json = result_df.to_json(orient='records')
with open(DOCUMENT_TEXT_FILE_PATH_JSON, 'w') as outputfile:
    outputfile.write(result_json)

# Clearing memory
del result_df

Step 4: Perform an exact keyword search in extracted texts

# read in data
bp_text_df = pd.read_json(BP_TEXT_FILE_PATH_JSON)

for keyword_dict_file_path in EXACT_KEYWORD_DICT_FILEPATHS.keys():
    with open(keyword_dict_file_path) as f:
        keywords_dict= json.load(f)

    result_df = search_df_for_keywords(input_df=bp_text_df,
                                   text_column_name=TEXT_COLUMN,
                                   id_column_name=DOCUMENT_ID_COLUMN,
                                   keyword_dict=keywords_dict)

    result_df.to_csv(EXACT_KEYWORD_DICT_FILEPATHS[keyword_dict_file_path], header=True, index=False)

del result_df

Step 5: Perform an fuzzy keyword search in extracted texts

! python features/textual_features/keyword_search/contextual_fuzzy_search_parallelised.py

with open(HOCHWASSER_KEYWORD_DICT_FILEPATH) as f:
    HOCHWASSER_KEYWORDS = json.load(f)
threshold=85
context_words=15
all_matches = search_best_matches_dict(input_df=bp_text_df,
                                         id_column_name=DOCUMENT_ID_COLUMN,
                                         text_column_name=TEXT_COLUMN,
                                         keyword_dict=HOCHWASSER_KEYWORDS,
                                         threshold=threshold,
                                         context_words=context_words)

all_matches

all_matches_json = all_matches.to_json(orient='records')
with open(HOCHWASSER_FUZZY_SEARCH_FILE_PATH_JSON, 'w') as outputfile:
    outputfile.write(all_matches_json)

Step 6: Extract content from regional plans

To extract content from regional plans, i.e. parse the text from the pdfs and divide them into chapters / sections. This yields the regional_plan_sections dataset.

extract_text_and_save_to_txt_files(pdf_dir_path=RPLAN_PDF_DIR,
                                   txt_dir_path=RPLAN_TXT_DIR)

input_df = parse_rplan_directory(txt_dir_path=RPLAN_TXT_DIR,
                                 json_output_path=RPLAN_OUTPUT_PATH)

input_df = parse_result_df(df=input_df)
# save to json
input_df.to_json(RPLAN_OUTPUT_PATH)

[32m2023-09-25 19:39:11.052[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m341[0m - [34m[1m../data/nrw/rplan/raw/text/muenster-2004.txt[0m
[32m2023-09-25 19:39:11.053[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m343[0m - [34m[1mProcessing file ../data/nrw/rplan/raw/text/muenster-2004.txt[0m
[32m2023-09-25 19:39:11.466[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m341[0m - [34m[1m../data/nrw/rplan/raw/text/bielefeld-_.txt[0m
[32m2023-09-25 19:39:11.467[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m343[0m - [34m[1mProcessing file ../data/nrw/rplan/raw/text/bielefeld-_.txt[0m
[32m2023-09-25 19:39:11.681[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m341[0m - [34m[1m../data/nrw/rplan/raw/text/arnsberg-2008-siegen.txt[0m
[32m2023-09-25 19:39:11.681[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m343[0m - [34m[1mProcessing file ../data/nrw/rplan/raw/text/arnsberg-2008-siegen.txt[0m
[32m2023-09-25 19:39:11.853[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m341[0m - [34m[1m../data/nrw/rplan/raw/text/duesseldorf-2018.txt[0m
[32m2023-09-25 19:39:11.854[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m343[0m - [34m[1mProcessing file ../data/nrw/rplan/raw/text/duesseldorf-2018.txt[0m
[32m2023-09-25 19:39:13.070[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m341[0m - [34m[1m../data/nrw/rplan/raw/text/bonn-2009.txt[0m
[32m2023-09-25 19:39:13.071[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m343[0m - [34m[1mProcessing file ../data/nrw/rplan/raw/text/bonn-2009.txt[0m
[32m2023-09-25 19:39:13.099[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m341[0m - [34m[1m../data/nrw/rplan/raw/text/detmold-2007-paderborn_hoexter.txt[0m
[32m2023-09-25 19:39:13.100[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m343[0m - [34m[1mProcessing file ../data/nrw/rplan/raw/text/detmold-2007-paderborn_hoexter.txt[0m
[32m2023-09-25 19:39:13.414[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m341[0m - [34m[1m../data/nrw/rplan/raw/text/köln-2006.txt[0m
[32m2023-09-25 19:39:13.415[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m343[0m - [34m[1mProcessing file ../data/nrw/rplan/raw/text/köln-2006.txt[0m
[32m2023-09-25 19:39:13.420[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m341[0m - [34m[1m../data/nrw/rplan/raw/text/arnsberg-2012-kreis_soest_hochsauerlandkreis.txt[0m
[32m2023-09-25 19:39:13.421[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m343[0m - [34m[1mProcessing file ../data/nrw/rplan/raw/text/arnsberg-2012-kreis_soest_hochsauerlandkreis.txt[0m
[32m2023-09-25 19:39:13.881[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m341[0m - [34m[1m../data/nrw/rplan/raw/text/arnsberg-2001-bochum_hagen.txt[0m
[32m2023-09-25 19:39:13.882[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m343[0m - [34m[1mProcessing file ../data/nrw/rplan/raw/text/arnsberg-2001-bochum_hagen.txt[0m
[32m2023-09-25 19:39:14.130[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m341[0m - [34m[1m../data/nrw/rplan/raw/text/arnsberg-2004-dortmund_unna_hamm.txt[0m
[32m2023-09-25 19:39:14.130[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m343[0m - [34m[1mProcessing file ../data/nrw/rplan/raw/text/arnsberg-2004-dortmund_unna_hamm.txt[0m
[32m2023-09-25 19:39:14.305[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m341[0m - [34m[1m../data/nrw/rplan/raw/text/ruhr-2009.txt[0m
[32m2023-09-25 19:39:14.305[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m343[0m - [34m[1mProcessing file ../data/nrw/rplan/raw/text/ruhr-2009.txt[0m
[32m2023-09-25 19:39:15.128[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m341[0m - [34m[1m../data/nrw/rplan/raw/text/aachen-2016.txt[0m
[32m2023-09-25 19:39:15.128[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m343[0m - [34m[1mProcessing file ../data/nrw/rplan/raw/text/aachen-2016.txt[0m
[32m2023-09-25 19:39:15.522[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m341[0m - [34m[1m../data/nrw/rplan/raw/text/kÔÇØln-2006.txt[0m
[32m2023-09-25 19:39:15.522[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m343[0m - [34m[1mProcessing file ../data/nrw/rplan/raw/text/kÔÇØln-2006.txt[0m
[32m2023-09-25 19:39:15.523[0m | [31m[1mERROR   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m347[0m - [31m[1mSkipping file ../data/nrw/rplan/raw/text/kÔÇØln-2006.txt due to error Format for file kÔÇØln-2006 not found, maybe it's not in the config file?[0m
[32m2023-09-25 19:39:15.523[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m341[0m - [34m[1m../data/nrw/rplan/raw/text/muenster-2014.txt[0m
[32m2023-09-25 19:39:15.524[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m343[0m - [34m[1mProcessing file ../data/nrw/rplan/raw/text/muenster-2014.txt[0m
[32m2023-09-25 19:39:15.811[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m341[0m - [34m[1m../data/nrw/rplan/raw/text/ruhr-2021.txt[0m
[32m2023-09-25 19:39:15.811[0m | [34m[1mDEBUG   [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m343[0m - [34m[1mProcessing file ../data/nrw/rplan/raw/text/ruhr-2021.txt[0m
[32m2023-09-25 19:39:15.855[0m | [1mINFO    [0m | [36mdata_pipeline.rplan_content_extraction.rplan_content_extractor[0m:[36mparse_rplan_directory[0m:[36m357[0m - [1mParsing done. Saved to ../data/nrw/rplan/features/regional_plan_sections.json[0m

Step 7: Perform an exact keyword search in extracted texts of regional plans

exact_result,exact_keywords = rplan_exact_keyword_search(input_df=input_df, save_path=RPLAN_KEYWORDS_PATH)

plot_keyword_search_results(result_df=exact_result,
                            keyword_columns=exact_keywords,
                            title="Exact Keyword Search Results")

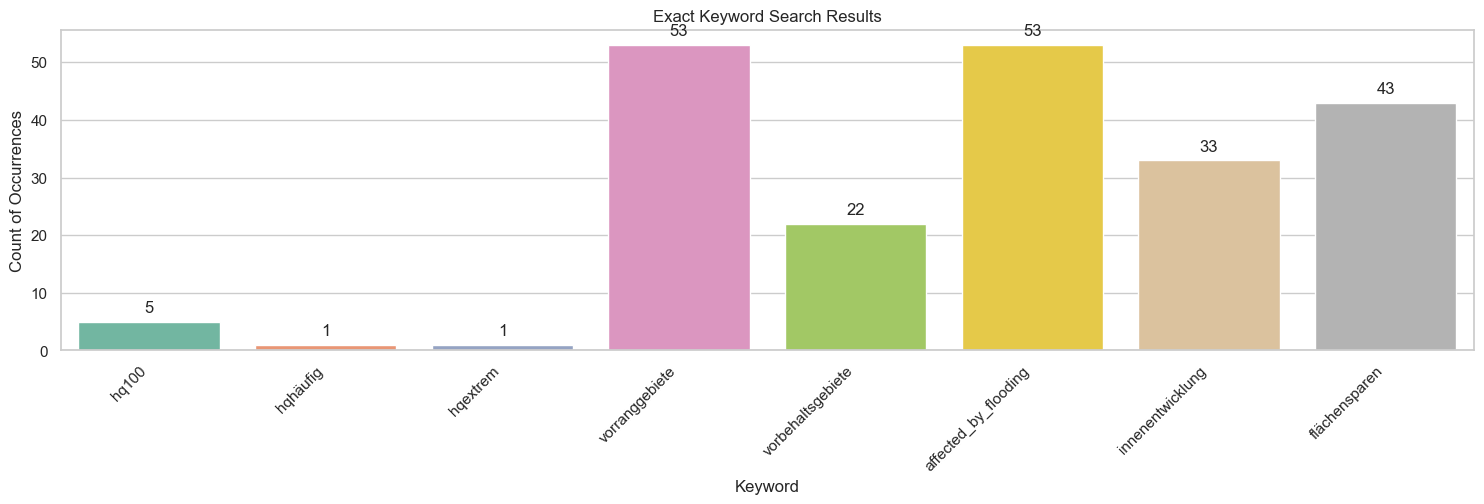

../../_images/1_execute_pipeline_33_0.png

del input_df, exact_result, exact_keywords

Conclusion

This notebook provides the code to execute the pipeline which populates the land sealing dataset. Further work is done by ‘knowledge_agent.ipynb’ which produces data using ChatGPT. Note that this shall require a ChatGPT API key of your own.

The ‘explorer.ipynb’ demonstrates functions which display and explore the complete data set.
